Active Handle Set 400 A Series Multi-Point Lock Trim - Left Hand - Choose Color
- Regular price
- $206.01
- Regular price
-
- Sale price
- $206.01
- Unit price
- per
Vendor : Amesbury Truth Hardware
Product Type : Hardware
Sku : HD401ALH-01

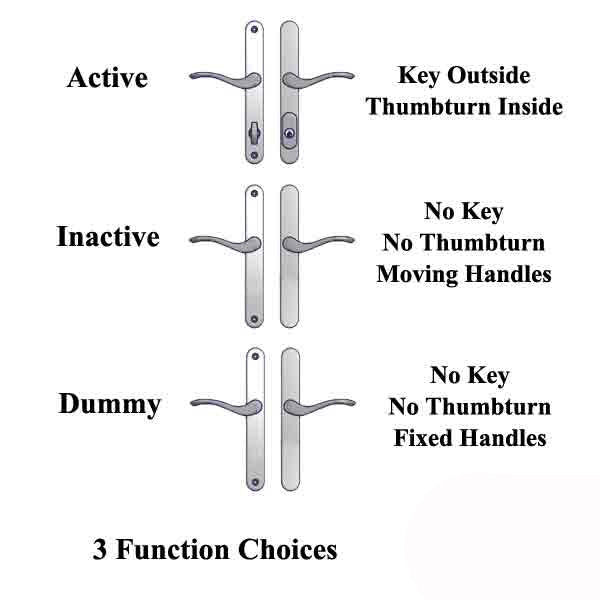

Amesbury® keyed hardware for primary active door with multi-point lock.
The lock trim replaces Integrity by Marvin®, Milgard®, G-U / Ferco®, and other American version multi-point locks.
Amesbury® 400 A Regency series with curved lever and rounded top escutcheon plate.
Application: Keyed primary door with thumbturn works with most mulit-point locks.
Handed: Left Hand
Handing is reversible and can be changed.
Levers do not have a set screw. It uses and C-ring (circlip) to hold handle in place.
Handle set uses a spring loaded cassette for added lever action.
Door Thickness: 1-3/4 Inch
Escutcheon Plate: A Style - Rounded Top
Actual Plate Width: 1.26 Inch
Actual Overall Plate Height: 9.65 Inch
Escutcheon Plate Screw Hole Spacing: 8.46 Inch
Handle to Cylinder (PZ): 3.62 Inch or 3-5/8 Inch (92 mm)
Cylinder Type: American with flat tail piece
Keyway: Schlage 5 pin, SC1 key blank
Optional Keyway: Kwikset® - Weiser® composite keyway
Handle Projection: 2.23 Inch
Handle Clearance: 1.23 Inch
Handle Length: 4.88 inches
Base Material: Zinc (available in brass substrate PVD finish for coastal areas)
The lock trim replaces Integrity by Marvin®, Milgard®, G-U / Ferco®, and other American version multi-point locks.
Amesbury® 400 A Regency series with curved lever and rounded top escutcheon plate.
Application: Keyed primary door with thumbturn works with most mulit-point locks.
Handed: Left Hand
Handing is reversible and can be changed.
Levers do not have a set screw. It uses and C-ring (circlip) to hold handle in place.
Handle set uses a spring loaded cassette for added lever action.
Door Thickness: 1-3/4 Inch
Escutcheon Plate: A Style - Rounded Top
Actual Plate Width: 1.26 Inch
Actual Overall Plate Height: 9.65 Inch
Escutcheon Plate Screw Hole Spacing: 8.46 Inch
Handle to Cylinder (PZ): 3.62 Inch or 3-5/8 Inch (92 mm)
Cylinder Type: American with flat tail piece
Keyway: Schlage 5 pin, SC1 key blank
Optional Keyway: Kwikset® - Weiser® composite keyway
Handle Projection: 2.23 Inch
Handle Clearance: 1.23 Inch
Handle Length: 4.88 inches
Base Material: Zinc (available in brass substrate PVD finish for coastal areas)
