Germania Lever, Lara 68mm Backplate, Active Right hand Handl
- Regular price
- $245.70
- Regular price
-
- Sale price
- $245.70
- Unit price
- per
Vendor : Amesbury Truth Hardware
Product Type : Hardware
Sku : MG2N-AR00
NOTE: DOES NOT HAVE CYLINDER
Cylinder: We need to know door thickness, 1-3/4 in. or 2-1/4 in., etc.
Discontinued, LIMITED to EXISTING Inventory

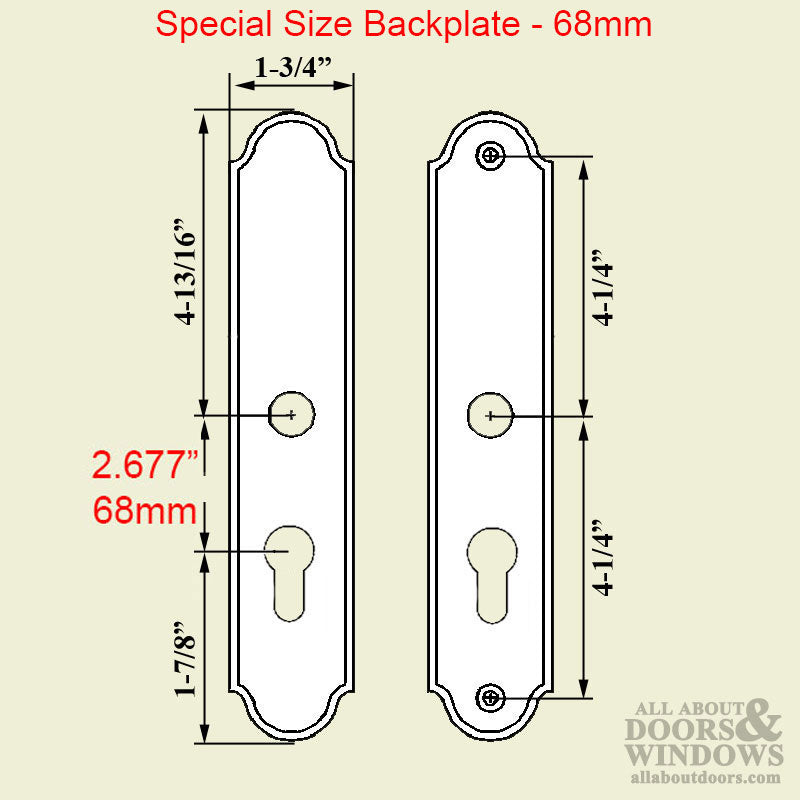

SPECIAL SIZE: NOT STANDARD - 2.677 in. (68mm) Handle to Cylinder Spacing.
See additional images
Function: Active Handleset, Uses Key outside, Thumbturn inside

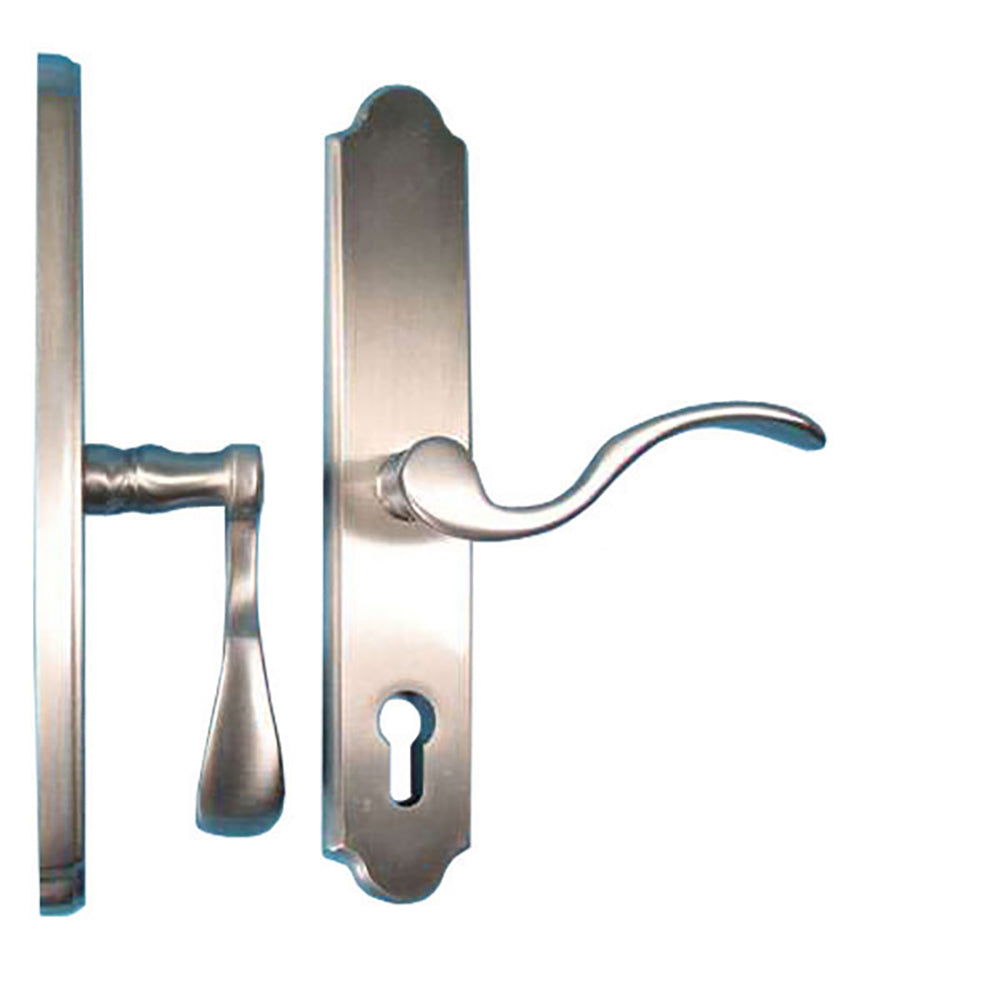

Germania handle with Lara backplate in a nonstandard size.

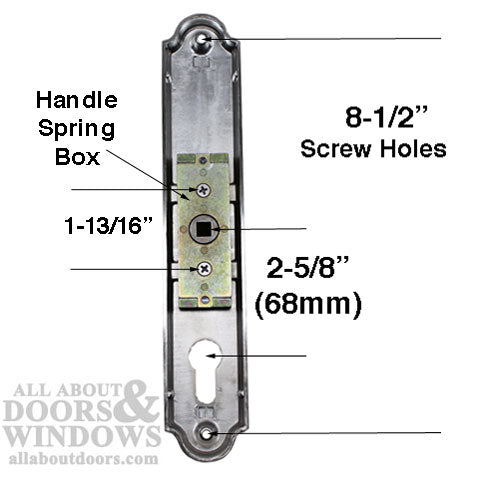

Handle PZ: 2-5/8 in. (68 mm) spacing from center of handle to center of thumbturn.
Cylinder Type: Euro, standard 360 degree.
Overall Cylinder Length: Varies according to door thickness
Lever Style: Germania, Curved
Plate Style: Lara, Arch Top
Spindle Diameter: 5/16 in. (8mm)
Keyway: TBD - Normally Schlage SC1
Finish: Satin Nickel
Spindle: 5/16 in. (8mm) Fits 1-3/4 (45mm) thick doors.
Installation Screw Thread: Metric M4
Door Thickness: Fits 1-3/4 (45mm) to 2-1/4 (57mm) thick Door.
Will fit thicker doors, but may require longer screws, Spindle and Cylinder
Handed: Yes, Reversible, Left or Right hand as needed
Note: The set screw is used to secure the shaft to the handle(s).
The(more...)
