V400® Horizontal Adjustable 4x4 Guide Hinge 2D - Choose Color
- Regular price
- $70.00
- Regular price
-
- Sale price
- $70.00
- Unit price
- per
Vendor : Amesbury Truth Hardware
Product Type : Hardware
Sku : W11515HRKW4
V400® Horizontal Adjustable 4 x 4 Guide Hinge 2D, reversible
Standard 3 hinge door uses 2 Guide hinges and 1 Set hinge
Standard 4 hinge door uses 3 Guide hinges and 1 Set hinge
Seamlessly retrofits a 4 X 4 one-step pocket route with 5/8'' corner radius.
Hinge Type: Guide - Horizontal adjustment
Hinge Size: 4 x 4
Corner: 5/8 Radius
Material: Brass Substrate (15)
Handed: NO - Removable Pin; Reversible for left or right hand doors

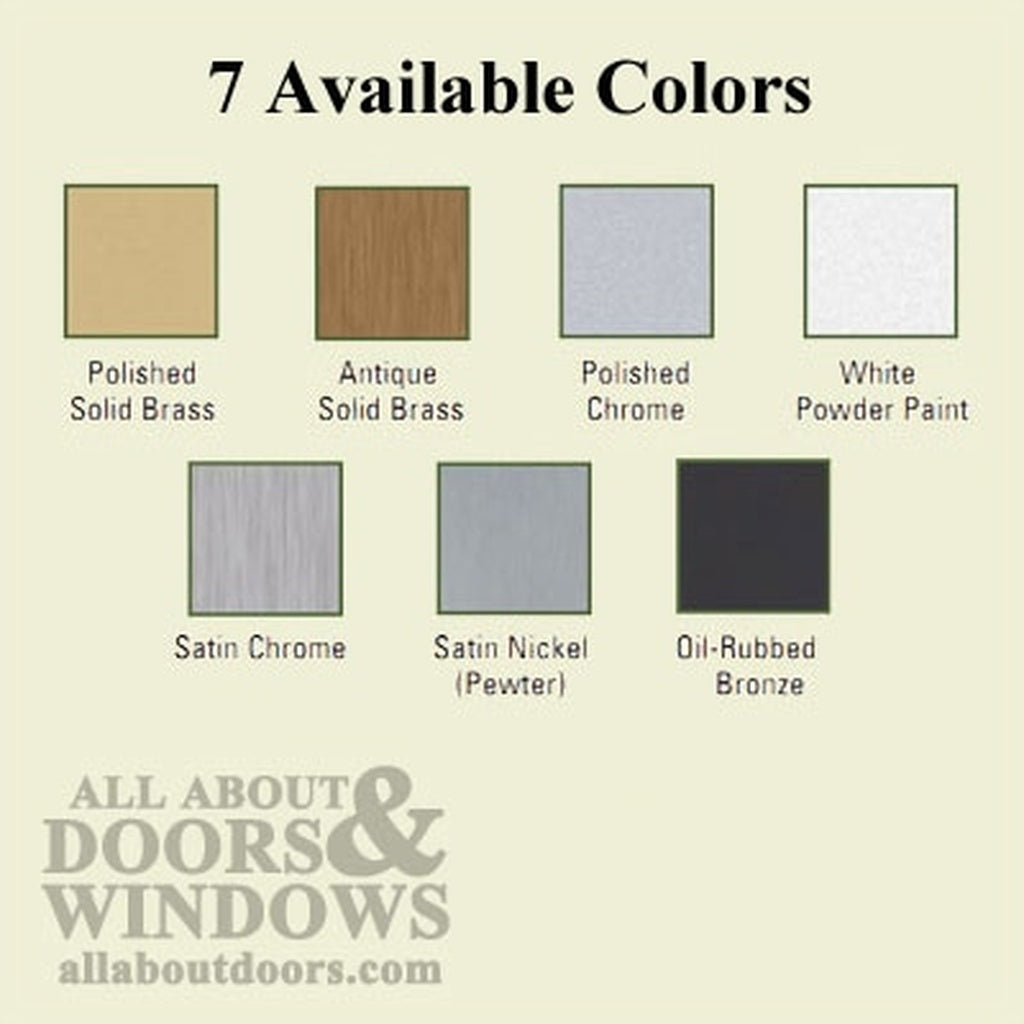

Color/Finish Options:
Brushed/Satin Nickel
Polished Brass
Antique Brass
Polished Chrome
White
Brushed/Satin Chrome
Oil Rubbed Bronze
Antique Nickel
Hex head adjustment screws, not Phillips or Slotted, to provide secure tool engagement and prevent stripping during adjustment.
Screw hole locations optimized away from panel edge to prevent accidental wood splitting.
Panel leaf incorporates a unique shield to keep out debris and provide a premium appearance in the closed position.
Incorporates Teflon filled bushings for increased wear resistance.
Non-removable pin (NRP) option available for secure out-swing applications.
Adjusts 1/4'' vertically and 3/16'' horizontally.
Easily reversible for either left or right-hand hinge application.
Innovative, patent-pending adjustment mechanism achieves extremely low adjustment torque with a standard 3/32'' hex wrench.
Exceeds BHMA grade 3 standards for wood, vinyl, aluminum and steel doors.
Bushing blends with the hinge finish.
Installation screws not included.
Each hinge will require
3: #9x1Inch flat head, wood screw for jamb wing
1: #9x3Inch flat head, wood screw for jamb wing
4: #9x1.5Inch flat head, wood screw for panel wing
Standard 3 hinge door uses 2 Guide hinges and 1 Set hinge
